TRS Performance Mobile Phone Tuning App

TRS PERFORMANCE / MOBILE TUNING

Your tune.
Your settings.

Choose your stage, match the map to your fuel and change supported settings from your phone.

  • 95 / 97 / 99 RON maps
  • Overrun settings
  • Cold-start off
● │ ▰iOS & Android

Available settings depend on your vehicle and package.

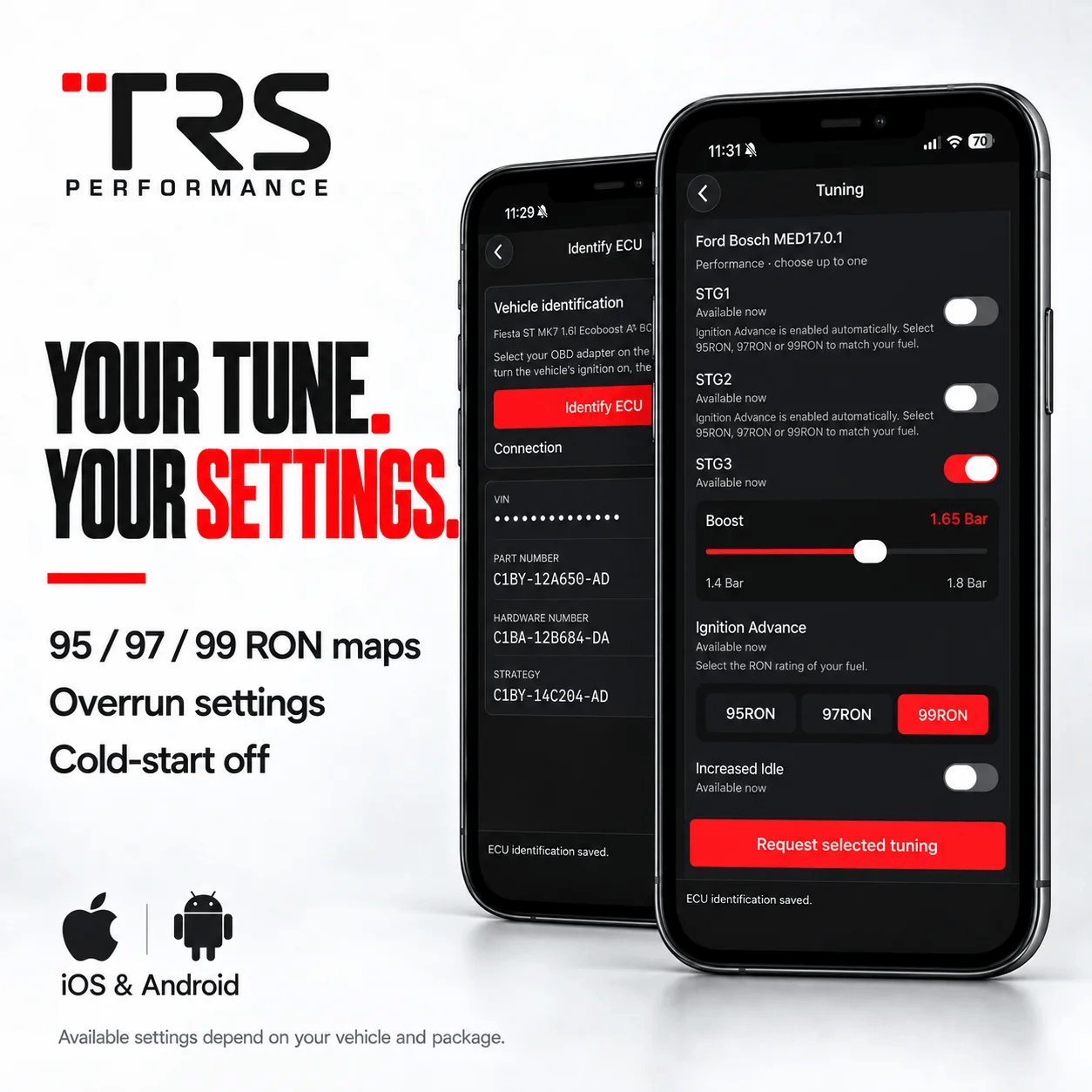

TRS Performance app tuning controls
THE REAL TRS APP

CHOOSE YOUR PERFORMANCE

Four stages. Your next level.

Choose your vehicle and stage to see its headline figures. Use the stage that suits your car and supporting hardware.

TRS Performance Licenses

STG1 & STG2£500 inc VAT

STG3 & STG4£600 inc VAT

Purchased within the app. OBD dongle sold separately.

MK7 FIESTA ST · STAGE 1

Stage 1

AVAILABLE NOW

For a standard or lightly modified Fiesta ST MK7.

POWER230–235 BHP
TORQUE380 Nm
HARD-CUT LIMITER7,000 RPM
✓ Flat-foot shifting✓ Brake Boost / Left Foot Braking Enabled✓ Unlimited reflashes

SUPPORTING HARDWARE

Stage 1 setup

No additional hardware is listed for Stage 1. Make sure your vehicle is in good condition and use the correct fuel map.

Figures are targets, not guarantees. Results depend on fuel, supporting hardware and vehicle condition.

CHANGE THE SETTINGS. KEEP THE CONTROL.

Make the tune yours.

Explore what you can do in the TRS Performance app. Tap a feature to see the matching app screen.

YOUR SETUP. YOUR CHOICE.

Try the tuning screen.

Choose MK7 or MK8, select a stage and fuel map, and explore the supported settings. Scroll inside the demo to see every control. Your stage selection also updates the stage details on this page.

  • MK7 STG1–4 or MK8 STG1–3
  • Pick 95, 97 or 99 RON
  • Explore the boost and feature controls

Interactive page preview only. It does not connect to or change your vehicle. Real tuning changes are made in the TRS app with a compatible OBD dongle.

‹Tuning● ● ▰
Ford Bosch MED17.0.1Performance · choose one stage
Boost1.65 Bar
1.4 Bar1.8 Bar
Select STG3 or STG4 to preview boost adjustment
Ignition advance
Choose the RON rating of your fuel.
Software settings
Overrun Choose one mode

Preview only · no vehicle connection

Flat-foot shiftingIncluded as standard
Brake Boost / Left Foot Braking EnabledIncluded as standard
Unlimited reflashesFor your licensed car

TRS CUSTOM FIRMWARE / MK7 FIESTA ST

Custom Firmware.
Your settings. Built in.

TRS Custom Firmware adds extra functions to your engine’s ECU: adjustable Launch Control and overrun controlled by the car’s ESC/Sport button. Choose how they behave in the app, then flash your settings to the car.

Set your launch RPM

Choose a launch limit from 2,500 to 4,000 RPM in 250 RPM steps. Hold ESC for approximately 5 seconds to select ESC off. Vehicle speed, pedal position and engine temperature must meet the activation conditions.

Put overrun on the Sport button

One press of ESC selects Sport mode. Set the minimum and maximum RPM, then press and lift off the accelerator within that window to trigger overrun. Choose a maximum duration from 0.25 to 1.50 seconds.

Reapplying the accelerator, leaving the RPM window or changing ESC mode can end it sooner. Engine temperature and existing protection conditions still apply.

When Custom Firmware features are selected, the app disables the standard overrun options. Use Sports Button Overrun to configure the effect instead.

Choose it. Flash it. Use it.

Install the approved Custom Firmware through the app first. The initial installation replaces the current tune with its supplied baseline calibration, so follow the app’s read and setup steps afterwards.

Choose your tuning and firmware settings, prepare and download the calibration, then flash. Changes take effect only after a successful flash. Adjust them again by choosing new values and reflashing.

MK7 Fiesta ST 1.6L only. Requires supported Bosch MED17.0.1 software C1BY-14C204-AD and an active licence for your vehicle. Follow the app’s compatibility checks and installation prompts. Custom Firmware options are intended for vehicles without catalytic converters; aggressive Launch Control or overrun can damage a catalytic converter.

Try the firmware controlsMK7 Fiesta ST · Interactive previewScroll inside the preview to see every setting ↓
Use Custom Firmware features

Standard overrun options are disabled. Use Sports Button Overrun below.

Launch Control

Hold ESC for approximately 5 seconds to select ESC off. Launch requires speed below 3 km/h, pedal above 60% and eligible engine temperature.

3,000 RPM
Sports Button Overrun

One ESC press selects Sport mode. Press and lift the accelerator inside your RPM window. Engine protection conditions still apply.

3,000 RPM
6,200 RPM

Example settings from the app. Website preview only; no vehicle connection.

Launch 3,000 RPM · Overrun 3,000–6,200 RPM · 1.50 s

Selections take effect after a successful flash in the app.

YOUR PHONE. YOUR CAR. CONNECTED.

Plug in. Pick your tune.
Flash in around 1–2 minutes.

Calibration reflash time can vary. Initial setup takes longer; full stock restores take around 5–8 minutes.

01

Plug in your OBD dongle

Connect the dongle to your car’s OBD port. Your compatible iPhone or Android phone does the rest.

02

Choose your setup in the TRS app

Select the calibration and settings for your stage, fuel and hardware.

03

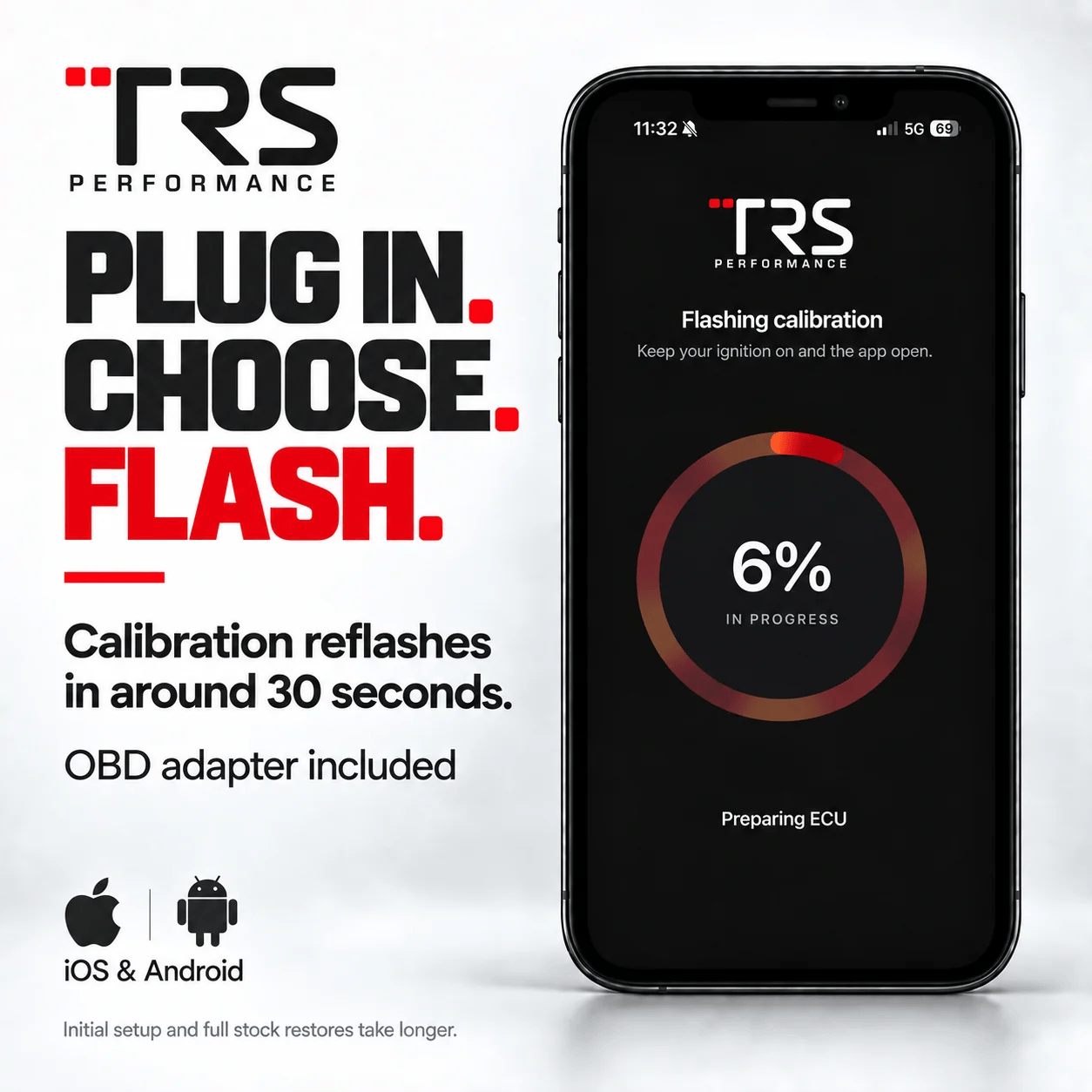

Flash. Then drive.

Follow the guided flash with the car parked and engine off. Ready for a change later? Choose again and reflash.

OUR PREFERRED OBD DONGLE

OBDLink MX+ OBD2 Bluetooth Scanner for iPhone, Android, and Windows

This is our preferred OBD dongle as it supports High Speed CAN networking - the most stable device to use with our app.

Buy OBDLink MX+ on Amazon ↗

ALSO SUPPORTED

vLinker MS BT

We also support vLinker MS BT, although transfer speeds are much slower than the OBDlink MX+, but it works as a cheaper alternative. Because of the transfer rate, a battery stabiliser is highly recommended especially for MK8 Fiesta ST's

Buy vLinker MS BT on Amazon ↗

GOOD TO KNOW

A few things to know.

What’s needed?+

You’ll need a supported OBD dongle and an active TRS Performance licence, priced at £500 inc VAT for STG1/STG2 or £600 inc VAT for STG3/STG4, and purchased within the app. The OBD dongle is sold separately. Our preferred dongle is the OBDLink MX+. We also support vLinker MS BT, although transfer speeds are much slower than the OBDlink MX+, but it works as a cheaper alternative. Because of the transfer rate, a battery stabiliser is highly recommended especially for MK8 Fiesta ST's

Android Users

Android users can benefit from using USB dongles such as vLinker MS USB. This is the fastest method of reading, writing and datalogging, as it uses a wired connection. However, there is a greater risk of accidentally disconnecting the USB or OBD connection, so please take extra care when programming using a wired connection.

Will it work with my car and phone?+

The app will work with Ford Fiesta ST MK7 1.6l Ecoboost and the Ford Fiesta ST MK8 1.5l Ecoboost vehicles. We support OBDLink MX+, vLinker MS BT and vLinker MS OBD. These listed OBD devices are fully compatible with our app and both supported vehicles.

How do unlimited tuning changes work?+

The licence allows unlimited reflashes for the licensed car. Use the TRS app and a compatible OBD dongle, and follow the supplied instructions each time.

Can I change calibration while driving?+

No. Make tuning changes with the vehicle parked and engine off. Follow the app's instructions and allow each flash to complete. Switchable maps seems great in theory, but they're limited to the hard coded switching, so once the map switching is set, that's it set in stone. With the new app and how it works you can constantly adjust based on what you require.

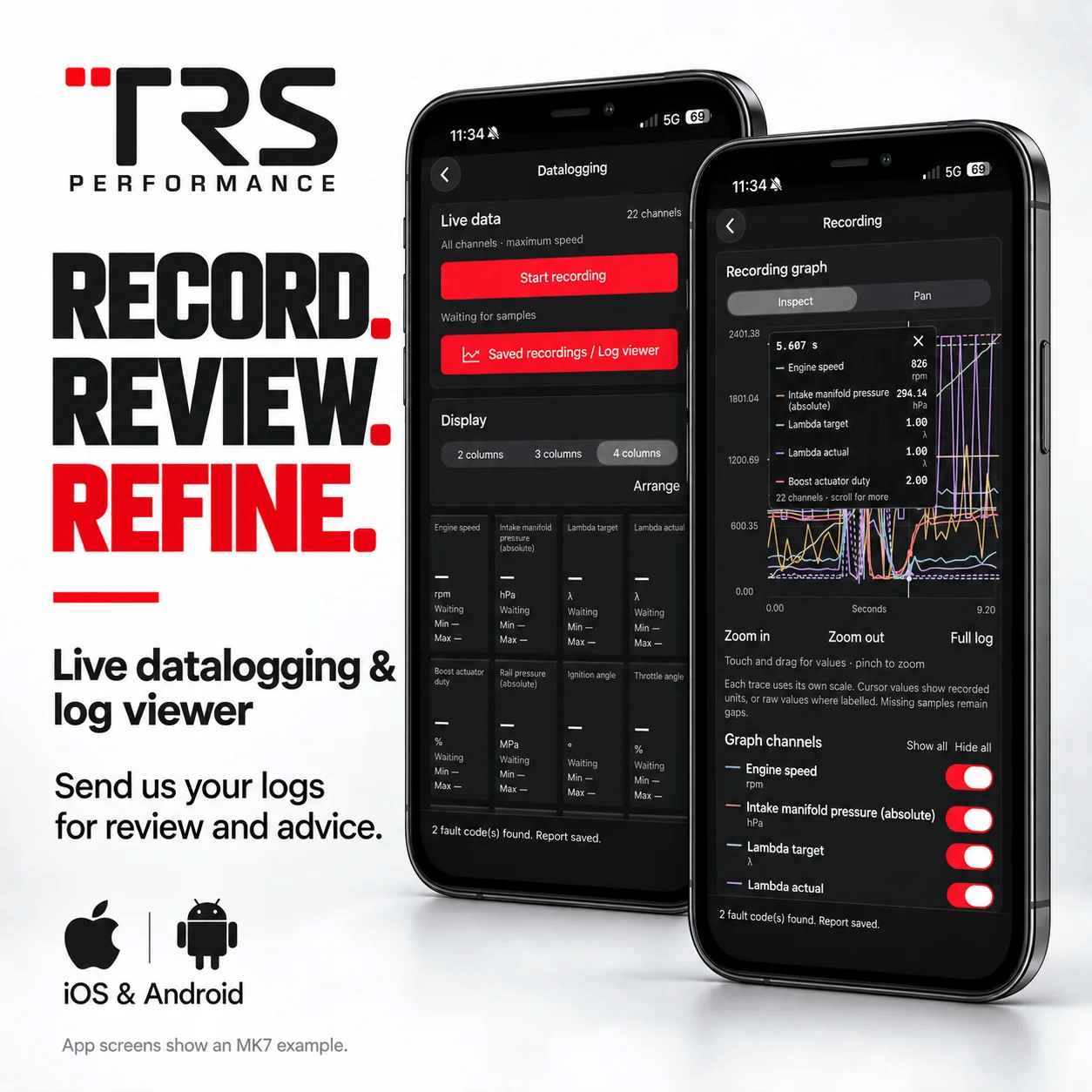

Does datalogging include log review or approval?+

The app fully supports datalogging of both vehicles. Once logs are saved as .CSV and sent to us, - we can inspect and review the logs, and advise on any changes whether it be software or mechanical changes. Contact us on WhatsApp with any logs or changes you may require.

Read our datalogging FAQ and recording guide.

What if I already have the previous Handset/Handheld device?

If you're the original purchaser of the old handheld device, we're offering an upgrade to the new app (without having to pay for a full license), this upgrade cost is £200+VAT. With that you'll unlock the core apps features and available tuning for your vehicle. Arrange your £200+VAT upgrade on WhatsApp.
